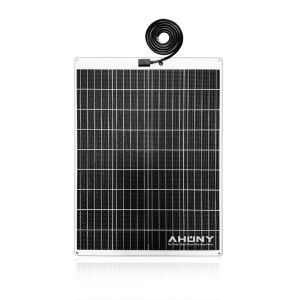

solar energy 190W walkable waterproof Solar Panel High Efficiency Mono Cell pv panel for marine camping rv boat yacht na

MAIN FEATURES

High efficiency solar cell :Use leading brand cell and high efficiency A grade quality to insure high and stable output.

Walkable and Anti-slippery: By and means do not damage cells,the rough anti-slippery surface is safer for installation or maintenance.

Longer lifespan 15 years guaranteed: Premium weather or moisture resistance,for harsh environment 15 years life guaranteed,over 25 years lifespan.

High temp resistance and little power loss :The surface material resists high temperature flame retardancy UL94 VTM-0.Rugged and insulated bottom reduces area touched surface of yacht,RV,cart etc.Enables air circulation,it cools down panel and get little power loss.

Rigid,thin,light design for widely use:It's rigid to resist hailstone.semi flexible with bend angle less 5 degree,suitable for off grid use,marine,yacht,RV roof,on grid home system,parking lot,portable power generator etc.It's 1/6 thickness 7/10 the weight of glass solar panel

Product Description

Model No.	eMarvel M190W
Product Name	Solar Panel 190w Waterproof Rigid High Efficiency Mono Cell with PET ETFE Surface.
Maximum Power[Wp]	190W
Solar Cell	PERC cell
Cell Array[Pcs]	4*9
Cell Efficiency	22.5%
Size[mm]	670*1510*5mm
Max Power Voltage Vmp[V]	20.88V
Max Power Current Imp[A]	9.10A
Open Circuit Voltage Voc[V]	24.43V
Short Circuit Current Isc[A]	9.60A
Net.Weight[kg]	7kg
Power tolerance[%]	±3%
NOCT[℃]	45±2
Operating Temperature[℃]	-40/+85
Temperature Coefficient Pmax[%/K]	-0.44
Temperature Coefficient Voc[[%/K]	-0.33
Temperature Coefficient Isc[[%/K]	0.06
Maximum System Voltage[V]	1000 V

Company Information

Packaging & Shipping

AHONY produces Flexible solar panel,glass solar panel,semi rigid solar panel,USB solar charger,folding solar kits for personal use,home garden,outdoor,balcony,mobile,marine etc.The company was founded in Shenzhen,southest China nearby Hongkong.The factory is located in Dongguan.We have more than 13 years solar experience,including producing,marketing,R&D.Ahony owns 4 official issued solar patents,1 of which is invention patent.We've managed under ISO9001 quality system,products are certified by CE,ROHS,SGS,IEC60512,ISO9001.
For every product manufactured by Ahony,we have strict producing process,quality inspection process and testing process.Ahony is dedicated to clean energy-solar technology innovation,ultralight solar panel technology,environmental friendly solar products:flexible solar panel,marine solar panel,foldable solar kit,glass solar module,solar power integration etc.

NAME|AHONY
AHONY is shorted for "All Honors of Nature",it means the sky,sea,people etc are all benefit from solar,from AHONY products.
The sky will be more blue;
Ocean will be more clear;
All the creatures are shining and growing up healthily under sunshine.
Sunshine is holy,people from all around the world share the same sun,solar is technology that bases on sun,makes full use of nature and benefit all creatures from nature.

VISION|SOLAR GOES EVERYWHERE
Started by a team with more than 14 years of solar experience,we are professional in crystalline silicon,thin film,electronics technology etc.By developing,producing new solar products,AHONY brings more ideas of responsible,environmental,energy saving,high technology,Ahony want to gather more people to protect our sourroundings by using environmental,energy saving products.

No economy development can take environment granted.
Ahony with you,Go solar,Gain Power,Go anywhere!

PRODUCTS|OFF GRID SOLAR
AHONY currently produces12v solar panel kits,foldable solar panel,portable solar charger,semi flexible solar panel,USB solar charger,walkable semi rigid solar module,tough solar panel.All are thin,ultralight solar panels.The target market of our products are for camping,RV,marine,motor-off grid,4wd,off road,outdoor and mobile use.with solar,it gives customer power and light.
